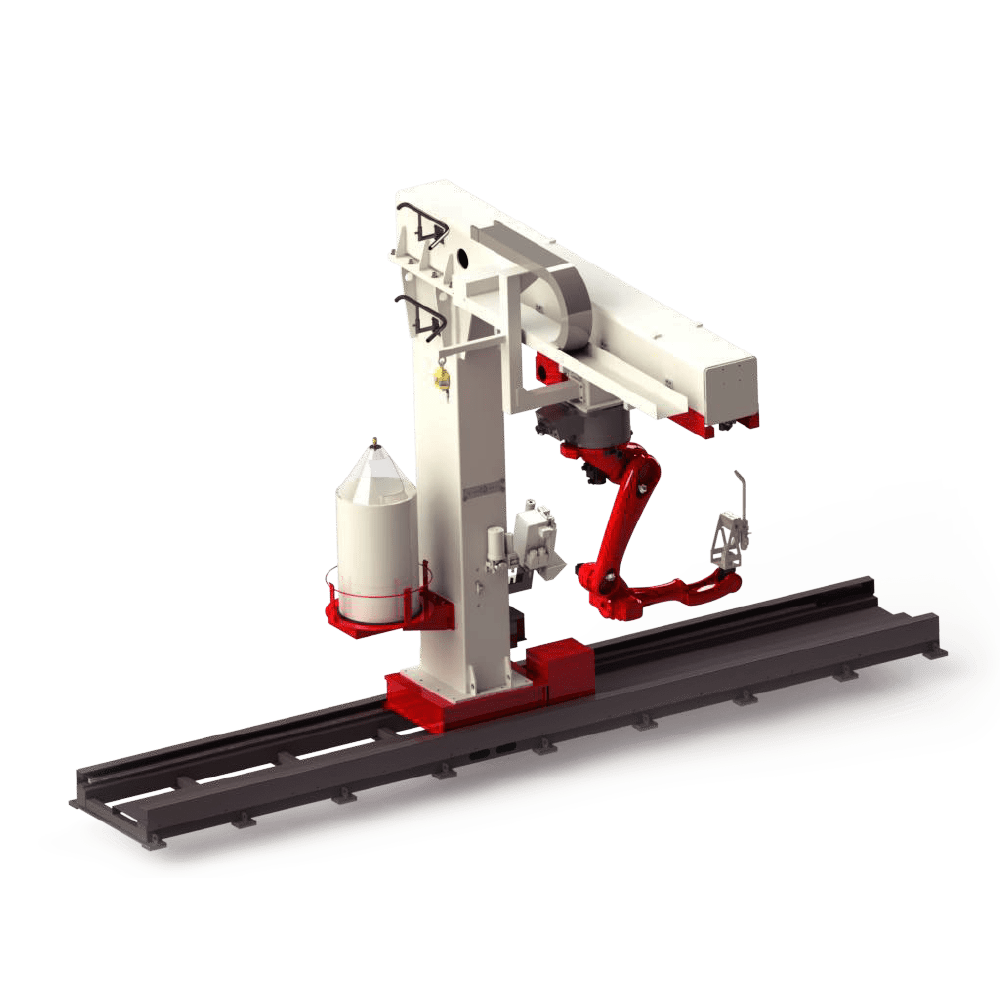

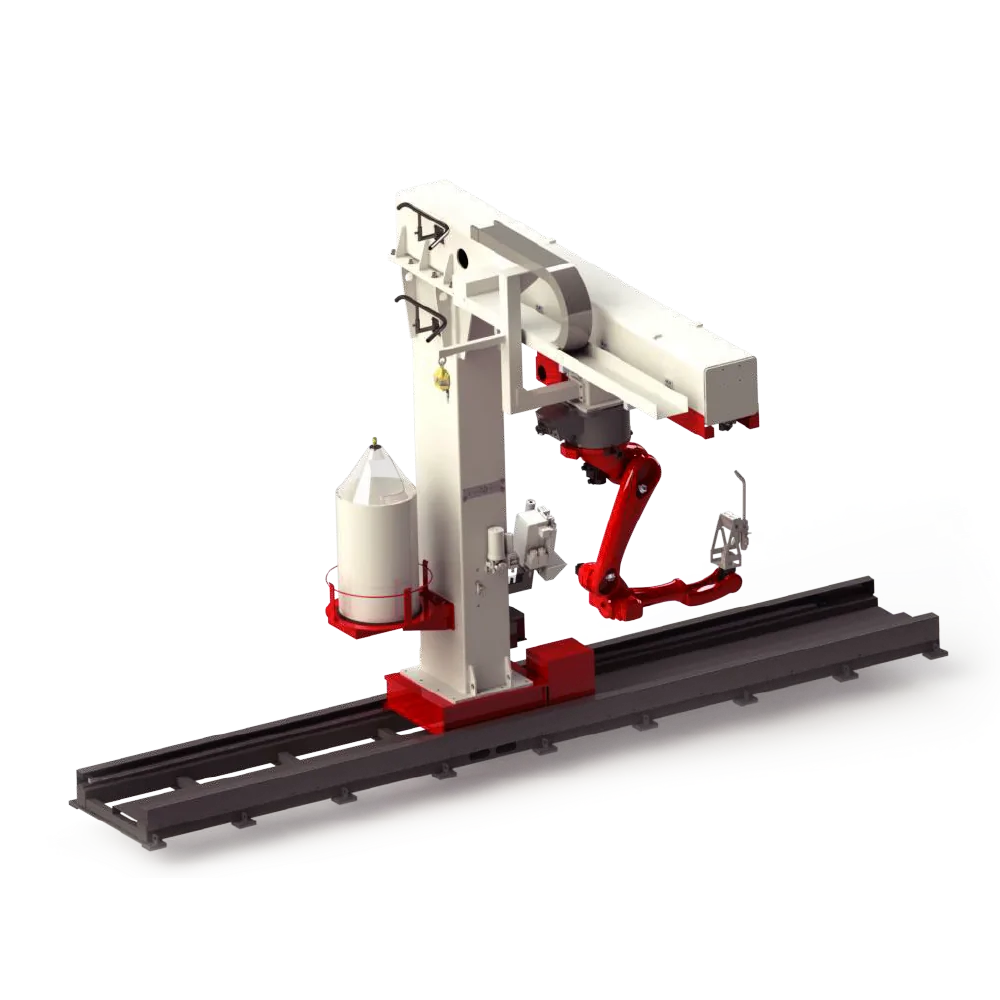

Automatiza procesos de soldadura con Smart MRW de Omnitec Láser, una celda robotizada de alta precisión para producción continua, estable y eficiente.

Wingspan
2010mm

Repeatability Accuracy
±0.07mm

Load Capacity
12kg

Near Field of View
461x255mm@300mm

Distant Field of View
1150x660mm@800mm

Visual Precision
≤0.5mm

Power Supply
3x380V±10%/50Hz

Axis
7/8/9 -Axis

Power Consumption
37kw

Land Area
(4m+Track length)
x(3+Rail Spacing)x3.5m
