Mandrinadoras

Para maquinado de piezas pesadas y de gran tamaño, con la facilidad de maquinarlas en un solo montaje, están equipadas con un husillo interno para alcanzar largas distancias para piezas de industria aeroespacial, automotriz y de energía, así como para la producción de grandes moldes y matrices.

Slide Slide

Conoce todos los modelos

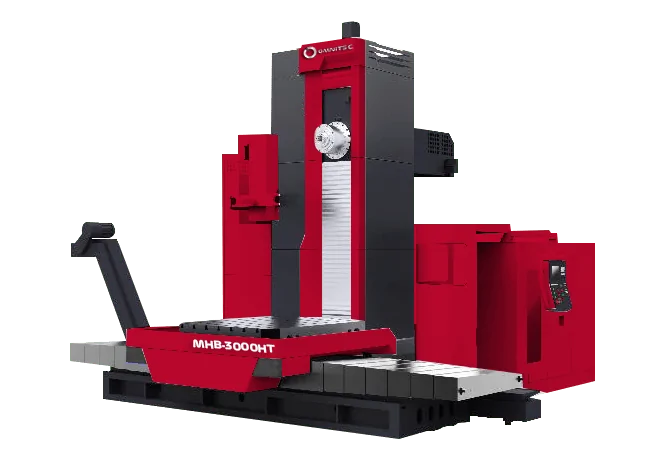

MHB-3000HT
MHB-1800U

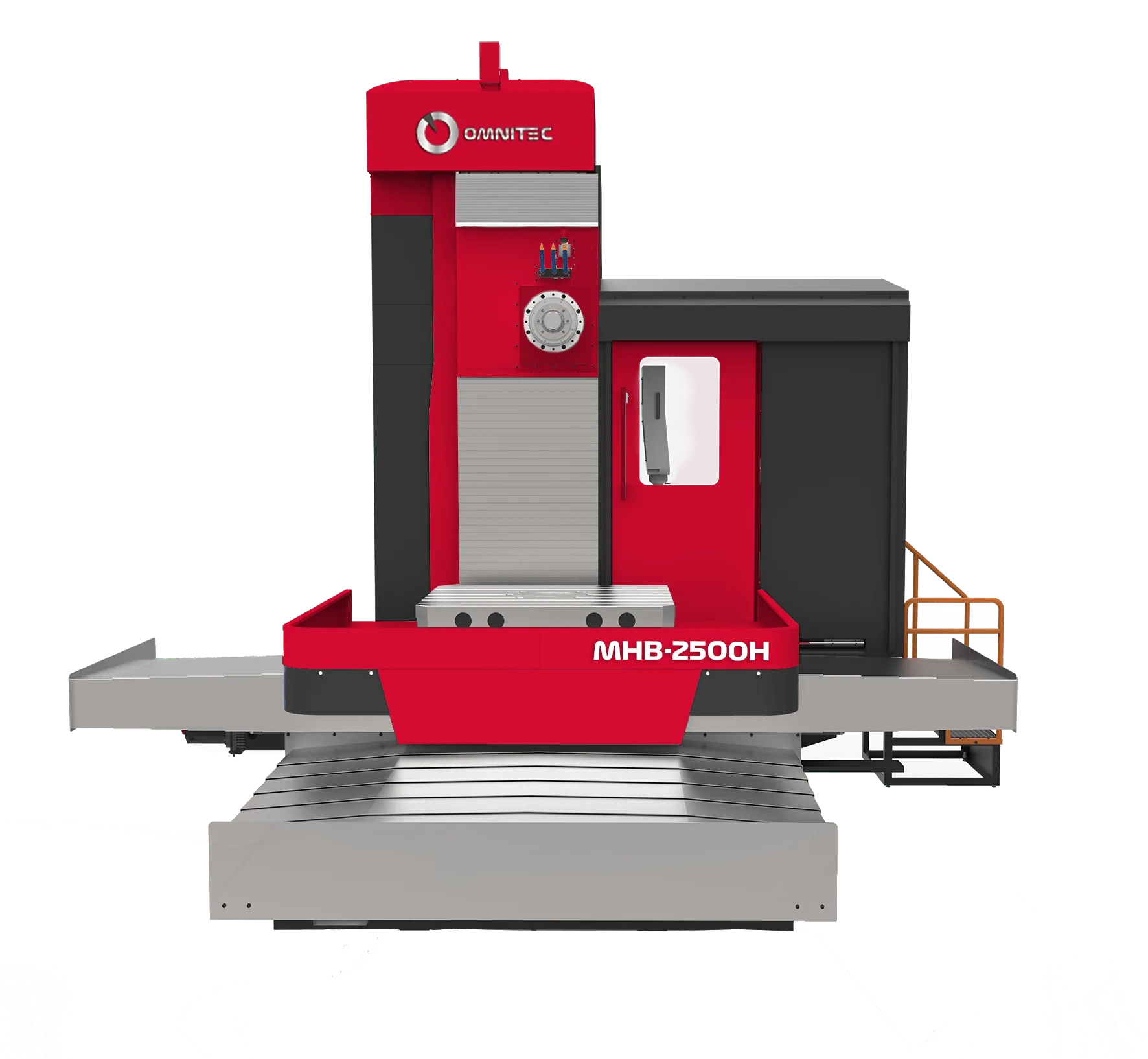

MHB-2500H


Fichas técnicas

MHB-600OCMHB6000CT
Work range
Travel(X/Y/Z/W)6000/2000/1000/800mm 8000/3000/1000/800mm
B axis travel0~360°0~360°
Spindle center to work table(Y) 300-2300mm 300-3300mm
Spindle
spindle power30/37kW
45/55kW
Spindle typeBT50
BT50
Pull-stud typeMAS403 P50T-1 MAS403 P50T-1
Spindle speed10-3000 r/min 10-2500 r/min
Spindle (boring) dia. Ф130mm Ф160mm
Milling spindle diameterФ221.44mm Ф260mm
Square ram size 450×450mm 450×450mm
Torque2739/3269Nm 3097/3592Nm
Max Axial force 25000N25000N
Speed
Rapid travel X/Y/Z/W 15/10/10/10 m/min 15/10/10/10 m/min
Feeding rate X/Y.Z/W 8 m/rpm 8 m/rpm
Accuracy
Position Accuracy X/Y/Z/W 0.026/0.014/0.011/0.025mm 0.032/0.017/0.011/0.025 mm
Re position accuracy X/Y/Z/W 0.015/0.009/0.007/0.018mm 0.019/0.009/0.007/0.018 mm
Lubrication system
Lubrication tank volume4L 4L
Lubrication pump power 100W 100W
Coolantsystem
Coolant tank volume900L 900L
Coolant tank motor power 2.2 kW 2.2 kW
Max. Coolant pressure0.7Mpa 0.7Mpa
Max flow 66L/min 66L/min
Others
Power supply 200A 200A
Voltage/Hertz380V/50HZ 380V/50HZ
Air source pressure 0.6~0.8 MPa 0.6~0.8 MPa
Air flow500 L/min 500 L/min
Power volume 92KVA 105 KVA
Machine weight 55000Kg 60000 Kg
MHB3000UTMHB3000UMHB-3000HTMHB-3000HMHB-2500HMHB1800SMHB1800H
Work range
Travel(X/Y/Z/W)3000/2000/1600/900 mm 3000/2000/1600/800 mm 3000/2000/1600/900 mm 3000/2000/1600/800 mm 2500/2000/1500/600 mm I31600/1200/1200/600 mm 1800/1600/1400/600 mm
Facing head sliding block travel (U)300 (±150)mm 300 (±150)mm
B axis travel0~360° 0~360° 0~360° 0~360° 0~360° 0~360°0~360°
Spindle center to work table(Y)30-2030 mm 0-2000 mm 0-2000 mm 0-2000 mm 0~2000 mm 0~1200 mm0~1600 mm
Spindle terminal to worktable center (minimum) -50 mm 100 mm 100~2200 mm 100 mm 100~2200 mm -25~1775 -25~1975 mm
Face head end face to worktable
Work table
Size2000×2000 mm 1600×1800 mm 2000×2000 mm 1600×1800 mm 1400×1600 mm 1250×1 250 mm 1250×1400 mm
Loading weight15 Tons 15 Tons 15 Tons 15 Tons 8 Tons 5 Tons5 Tons
T slot width28 mm 28 mm 28 mm 28 mm 28 mm 28 mm28 mm
Guideway typeRoller/sliding composite guideway Roller/sliding composite guideway Roller/sliding composite guideway Roller/sliding composite guideway Roller/sliding composite guideway Roller guideway Roller/sliding composite guideway
X/Y/Z guideway dimension 2500/2000/1500 mm 200X90 mm 200X90 mm
Spindle
spindle power30/37 kW 22/30 kW 30/37 Kw 22/30 kW 18.5/22 kW 15/18.5 kW 15/18.5 kW
Spindle typeBT50 BT50 BT50/CT50 BT50/CT50 BT50/CT50 BT50BT50
Pull-stud typeMAS403 P50T-1 MAS403 P50T-1 MAS403 P50T-1 MAS403 P50T-1 MAS403 P50T-1 MAS403 P50T-1
Spindle speed10-1500 r/min 10-1500 r/min 10-2000 r/min 10-2500 r/min 10-2500 r/min 5-2500 r/min5~3000 r/min
Spindle diaФ160 mm Ф130 mm Ф160 mm Ф130 mm φ110 mm φ110 mm φ110 mm
Spindle max torque2600/3120 Nm 2700Nm 2553/3063 (30min) Nm 2837/3868(30min) Nm 2150/2590(30min) Nm 1205/1487(30min) Nm 3000/3651(30min) Nm
Spindle max axial force25000 N 25000 N 25000 N 25000 N 15000 N 15000 N 15000 N
Facing head (U axis)
Facing head diameter800mm800mm
Facing head max machining diameter800mm 1300mm 1000mm
Facing head rotation speed5—150r/min 5—125r/min
Facing head max torque5000Nm 4600Nm
Speed
Rapid travel X/Y/Z/W/U10/10/10/4/2 m/min 10/10/10/4/2 m/min
Feeding rate X/Y.Z/W/U6/6/6/2/1 m/rpm 6/6/6/2/1 m/rpm
Rapid travel X/Y/Z/W10/10/10/4 m/min 10/10/10/4 m/min 10/10/10/4 m/min 10/10/10/8 m/min 5/5/5/3 m/min
Feeding rate X/Y.Z/W6/6/6/2 m/rpm 6/6/6/2 m/rpm 6/6/6/2 m/rpm
Rapid travel speed B axis 3r/min
Cutting feed rate X/Y.Z/W 8/8/8/6 m/rpm 3/3/3/m/min
Cutting feed rate B1 r/min 1 r/min
Axis moving
X axis ball screw80X10 mm 80X10 mm 80X10 mm 80X10 mm 63X10 mm 63X10 mm
Y axis ball screw63X10 mm 63X10 mm 63X10 mm 63X10 mm 63X10 mm 63X10 mm
Z axis ball screw 63X10 mm 63X10 mm 63X10 mm 63X10 mm 63X10 mm 63X10 mm
X axis motor 6KW 6KW 6KW 6KWαiF40/3000 6KW βiS40/2000 A06B-2089-B103 3KW
Y axis motor 9KW 9KW 9KW 9KWαiF40/3000 6KW βiS30/2000 A06B-2087-B403 3KW
Z axis motor 6KW 6KW 6KW 6KW αiF40/3000 6KW βiS40B/2000 A06B-2089-B403 3KW
Accuracy
Position accuracy X/Y/Z/W 0.025/0.02/0.02/0.025 mm 0.025/0.02/0.02/0.025 mm 0.02/0.02/0.02/0.025 mm 0.025/0.02/0.02/0.025 mm 0.025/0.02/0.02/0.025 mm 0.015/0.015/0.015/0.02 mm 0.02/0.02/0.02/0.02 mm
Position accuracy U 0.03mm0.03mm
Position accuracy B10"10” 10” 10” 10” 10” 10”
Re position accuracy X/Y/Z/W0.017/0.015/0.015/0.018 mm0.017/0.015/0.015/0.018 mm 0.015/0.015/0.015/0.020 mm 0.017/0.015/0.015/0.018 mm 0.017/0.015/0.015/0.018 mm 0.01/0.01/0.01/0.015 mm 0.015/0.015/0.015/0.015
Re position accuracy U 0.02mm0.02mm
Re position accuracy B6”6” 6” 6” 6” 6” 6”
Lubrication system
Lubrication tank volume3*4L3*4L 3*4L 3*4L 3*4L 4L 4L
Lubrication pump power100w100W 100W 100W 100W 20W 20W
Coolant system
Coolant tank volume900L900L 900L 900L 900L 400L 400L
Coolant tank motor power2.2 kW2.2 kW 2.2 kW2.2 kW 2.2 kW 2.2 kW 2.2 kW
FilterFirst layer 10 mesh/ second 40 meshFirst layer 10 mesh/ second 40 mesh First layer 10 mesh/ secound 40 meshFirst layer 10 mesh/ second 40 mesh First layer 16 mesh/ secound 40 mesh 20 mesh 20 mesh
Max. Coolant pressure0.7Mpa 0.7Mpa 0.7Mpa 0.7Mpa 0.9Mpa 0.9Mpa 0.9Mpa
Max flow 66L/min 66L/min66L/min 66L/min 4m3/h 2.2 kW 2.2 kW
Others
Power supply120A 121a 130A 120A160A 80A 85A
Voltage/Hertz 380V/50HZ 380V/50HZ380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Air source pressure0.6~0.8 MPa 0.6~0.8 MPa 0.6~0.8 MPa 0.6~0.8 MPa 0.5~0.8MPa 0.6-0.8MPa0.6-0.8MPa
Air flow500 L/min 500 L/min 500 L/min 500 L/min 500 L/min
Power volume 88 KVA 80 KVA 88 KVA 80 KVA 80 KVA 55 kVA55 kVA
Machine weight 42000 Kg 40000 Kg 40000 Kg 40000 Kg 30000 Kg 16000 Kg 21000 Kg
Dimension 7543X7158X5094 mm 7543X7158X5094 mm 7543X7158X5094 mm 7543X7158X5094 mm 8094X7418X5540 mm 7300*5100*3770 mm 7213X5315X4761 mm

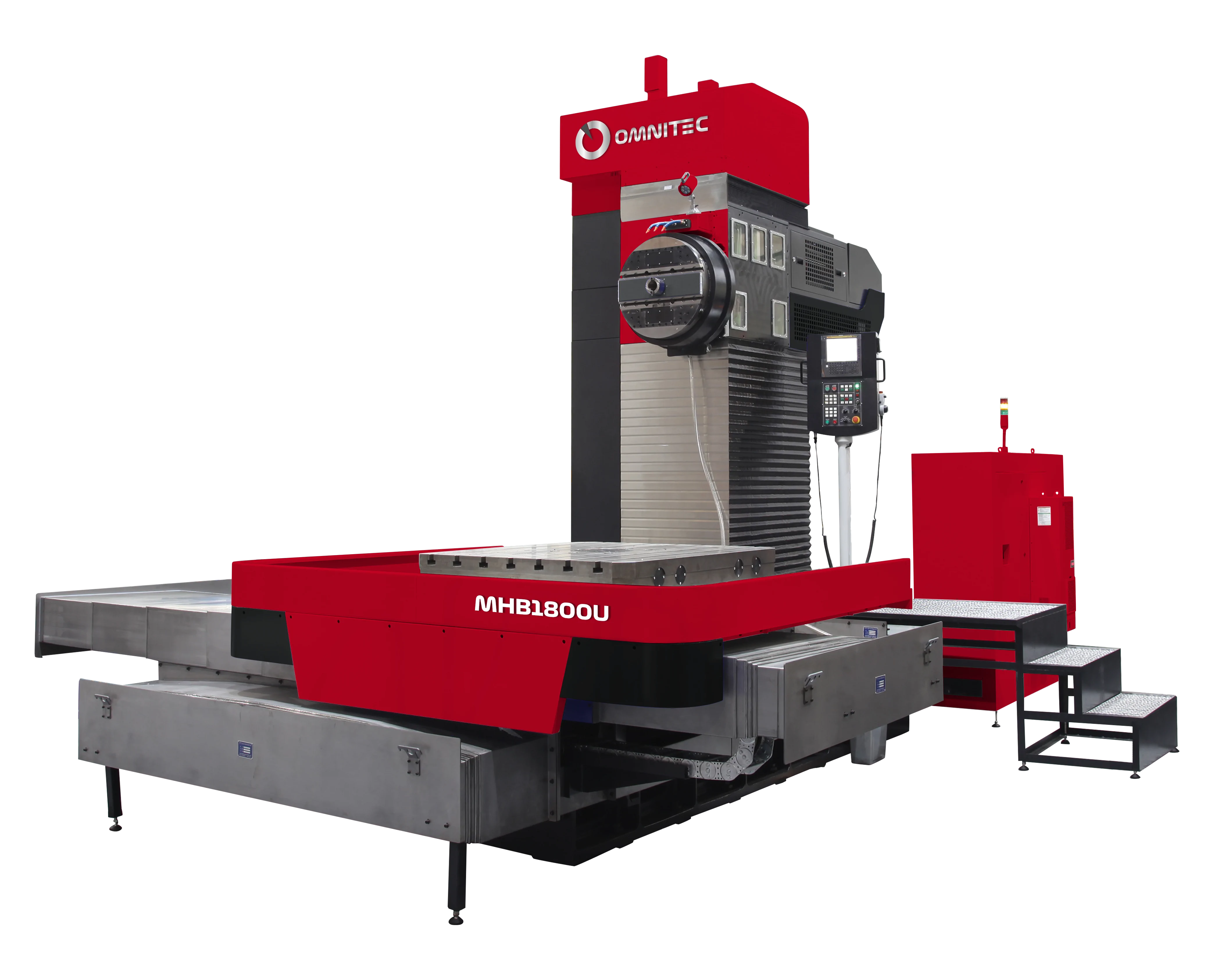

MHB1800U
Work range
Travel(X/Y/Z/W)1800/1600/1400/600 mm
Face head travel(U)200(±100)mm
B axis travel0~360°
Spindle center to work table(Y)0~1600 mm
Spindle end face to worktable -130~1870mm
Face head end face to worktable 475~1875 mm
Work table
Size1250×1400 mm
Loading weight5 Tons
T slot width 28 mm
Guideway typeRoller/sliding composite guideway
Spindle
spindle power15/18.5 kW
Spindle typeBT50
Pull-stud typeMAS403 P50T-1
Spindle speed5-1500 r/min
Spindle max torque1480/1826Nm (30min)
Spindle max axial resistance force 15000N
Face head dia. φ670 mm
Face head speed7-165 rpm
Face head max. torque 2227/2742(30min) Nm
Boring shaft diameter φ110 mm
Speed
Rapid travel X/Y/Z/W/U5/5/5/3/2.5 m/min
Feeding rate X/Y.Z/W/U3/3/3/2/2/1 m/rpm
Feeding rate B 2 r/min
Axis moving
X axis ball screw63X10 mm
Y axis ball screw63X10 mm
Z axis ball screw 63X10 mm
X axis motor βiS40/2000 A06B-2089-B103 3KW
Y axis motor βiS30/2000 A06B-2087-B403 3KW
Z axis motor βiS40B/2000 A06B-2089-B403 3KW
Accuracy
Position Accuracy X/Y/Z/W/U 0.02/0.02/0.02/0.03/0.03 mm 10”
Position Accuracy B10”
Re position accuracy X/Y/Z/W/U 0.015/0.015/0.015/0.025/0.025 mm
Re position accuracy B 6”
Lubrication system
Lubrication tank volume4L
Lubrication pump power20W
Coolant system
Coolant tank volume400L
Coolant tank motor power2.2 kW
Filter20 mesh
Max. Coolant pressure0.9Mpa
Max flow2.2 kW
Others
Power supply55A
Voltage/Hertz 380V/50HZ 380V/50HZ
Air source pressure0.6-0.8MPa
Power volume 60 kVA
Machine weight 21300 Kg
Dimension 7213X5315X4761 mm
Item Unit BP-500
Travel（X/Y/Z） mm 5000/3000/1250
Column span mm 2660
Machining ranges Spindle center to column mm 620
Spindle nose to worktable mm 850～2100
Worktable size mm 2150×2150（double）
Work table Max load T/m2 10
T slot size mm*A 10×22×360
Spindle motor power kw 22/26
Max torque N.M 280/331
Tool shank size CT50/BT50
Spindle Pull stud size P50T-1（MAS403）
Speed rpm 20～2500
speed Traverse speed(X/Y/Z) m/min 2008-08-08 00:00:00
Quantity of tools 2016-12-01 00:00:00
Tool shank CT50/BT50
Pull stud size P50T-1（MAS403）
Tool maxim Dia/length/weight mm/mm/Kg φ200/400/25
ATC Tool max dia（empty neighbor） mm 250
(optional) Tool selection Random
Tool exchange time（T-T） S 4
Machine Accuracy Positioning accuracy（X/Y/Z） mm 0.02/1000
Repeat accuracy（ X/Y/Z） mm 0.01/1000
Machining Ability Max drill dia (Normalized steel) mm φ80
Max tapping dia (Normalized steel) mm M40
Air source/air pressure 500L/min 6~8bar
others Total power KVA 45
Coolant tank capacity L 1800
Dimensions mm 10400 ×6200×5300
Net weight Kg 24000
